Main functional features of the automatic quantitative delivery tank for high-efficiency coating machines

In recent years, Jianpai Company has conducted in-depth research and development on sugar coating technology, and has made new breakthrough innovations, realizing fully automated operation of sugar coating process; it has the advantages of good coating quality, easy operation, fast coating time, energy saving, no dust, and cost saving, and is deeply favored and praised by users.

The device adopts a one-can three-barrel structure, which can mix, keep warm, weigh, and quantitatively convey sugar coating syrup, and can also realize the mixing, weighing, and quantitative conveying of film coating liquid. It is a highly intelligent slurry delivery system.

1. Weighing, insulation, conveying, emulsification, and control system integration

2. One-can three-barrel structure is adopted. The isolation layer, powder coating layer, monosaccharide layer, and color sugar layer are distributed in different barrels. The various slurry conveying coatings are automatically switched by the program, or manually switched on the touch screen, without the need for personnel to change pipes, reducing pollution.

3. Powder coating layer: directly add talcum powder and syrup into the special barrel for powder coating layer, and use the high-speed homogenization emulsification system to make the slurry achieve better emulsification effect; and the speed can be adjusted slowly through stepless speed regulation to achieve a stirring effect and prevent precipitation.

4. Automatic quantitative measurement Through multiple weighing sensors of Mettler Toledo, they are merged into the junction box and converted into a precise signal to access the weighing instrument. The valve and pump are directly controlled by the instrument to control the quantitative measurement faster and more accurately. At the same time, the data is fed back to the programmable controller.

After the syrup is automatically quantitatively measured, the quality of sugar coating can be better, faster and more accurately guaranteed.

5. Through this device, the quantitative automatic addition of each layer during the sugar coating process can be realized (to ensure that the total weight deviation of the syrup added to each layer is accurate to grams).

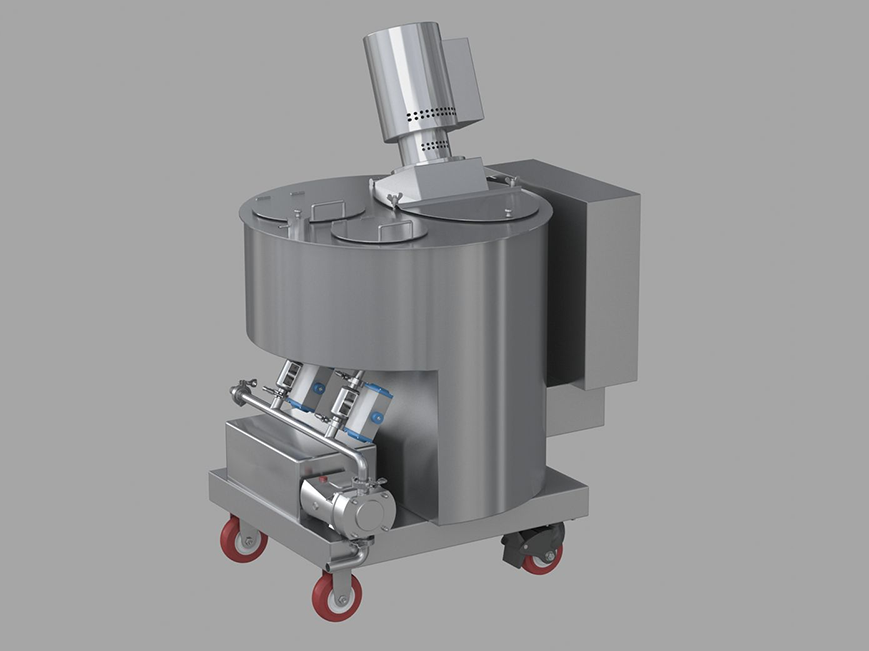

6、As shown below
