How to Make Pills?

1. Importance of Pill Manufacturing

Pills, or pharmaceutical tablets, are among the most common drug delivery systems worldwide. They are convenient, portable, and allow accurate dosing, making them a cornerstone in pharma tablet manufacturing.

The quality of tablet production directly affects drug safety, stability, and patient outcomes. Therefore, understanding the tablet manufacturing steps is essential for both professionals and businesses involved in formulation of drugs.

1.1 Two Core Pill Manufacturing Methods

There are two widely adopted approaches in tableting manufacturing:

• Direct Compression (DC):a simple, energy-efficient, and solvent-free method.
• Granulation:a particle-enlargement method used when APIs or excipients lack suitable properties for DC.

Each has its advantages and challenges, and the choice depends on API properties, excipient performance, and the overall tablet composition.

2. Key Ingredients in Tablet Manufacturing

Before going into the tablet making procedure, it’s important to understand the core components of a tablet.

2.1 Active Pharmaceutical Ingredient (API)

The API is the main ingredient that provides therapeutic activity. APIs may vary widely in dose, solubility, flowability, and stability, which directly influences the pill manufacturing process chosen.

• Low-dose APIs:risk of segregation and poor uniformity.
• High-dose APIs:fillers may not adequately improve compressibility, requiring granulation.

2.2 Pharmaceutical Excipients

Excipients are non-active components in the manufacturing tablet process. They ensure tablets can be compressed, stored, and taken effectively. Common categories include:

• Fillers/Diluents(e.g., lactose, MCC, mannitol) – add bulk.
• Binders(e.g., PVP, starch) – improve cohesion.
• Disintegrants– ensure tablet breaks apart after ingestion.
• Lubricants(e.g., magnesium stearate) – prevent sticking.
• Coatings– enhance stability, taste-masking, and patient compliance.

Together, the API and excipients make up the tablet composition, which is the foundation of every tablet production strategy.

3. Direct Compression (DC)

3.1 Pill Manufacturing Process

The tablet making procedure for DC involves just two steps:

Blending: The API is mixed with excipients designed for good flow and compressibility.

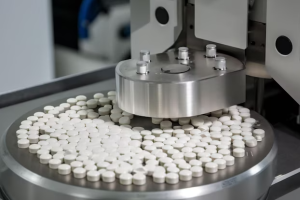

Compression: The powder blend is directly compressed into tablets using a tablet press.

3.2 Advantages of Direct Compression

• Minimal tablet manufacturing steps→ faster and cheaper production.
• No solvents → eco-friendly and safe.
• Gentle on APIs → suitable for moisture- or heat-sensitive drugs.
• Compatible with continuous manufacturing.

3.3 Challenges in Direct Compression

• Uniformity issues with low-dose APIs due to segregation.
• High-dose APIs may suffer from poor flow/compressibility.
• Reliance on specialized excipients (DC grades) → higher raw material costs.

4. Granulation

4.1 Definition

Granulation is the process of tablet production where powders are converted into larger, free-flowing granules, improving uniformity and compressibility.

4.2 Why Use It?

Granulation is necessary when APIs or excipients do not have the physical properties required for DC. It improves:

• Powder flow.
• Tablet strength.
• Uniformity of the formulation of drugs.

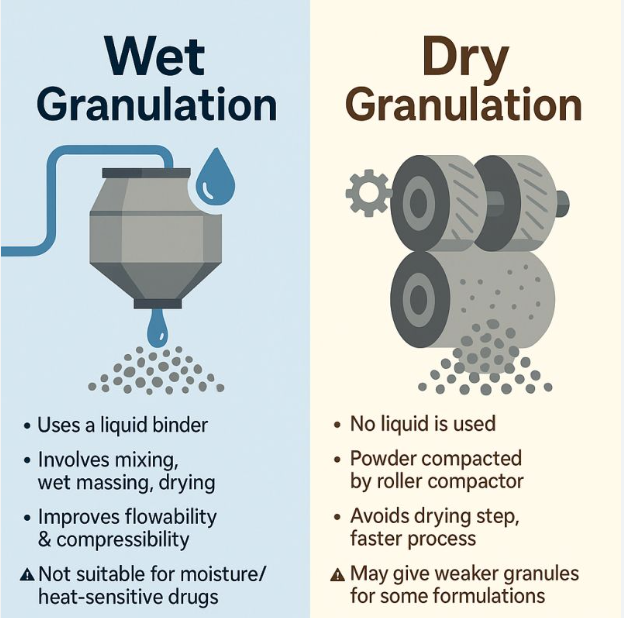

4.3 Dry Granulation

• Process:Mechanical compression of powder into slugs or sheets, followed by milling into granules.
• Techniques:Slugging and Roller Compaction.
• Best for:APIs sensitive to heat and moisture.
• Pros:Solvent-free, shorter process, cost-effective.

4.4 Wet Granulation

• Process:Uses a binder solution to agglomerate powders, followed by drying and sizing.
• Techniques:High-shear, Twin-screw, Fluid-bed granulation.
• Best for:APIs with poor compressibility or low dose.
• Pros:Strong granules, excellent flowability, wide applicability.
• Cons:More time- and energy-intensive, solvent residues possible.

5. Comparison Table of Pill Manufacturing Methods

In pharmaceutical tablet manufacturing, three primary methods are widely used: direct compression (DC), dry granulation (DG), and wet granulation (WG), each with its own distinct process, applications, benefits, and challenges.

Direct compression is the simplest and most straightforward method. In this process, the active pharmaceutical ingredient (API) is blended with suitable excipients and then directly compressed into tablets without additional processing steps. It is particularly well-suited for heat- and moisture-sensitive APIs as well as powder blends that possess good compressibility and flowability. The key advantages of direct compression include its speed, simplicity, and eco-friendliness, since it is solvent-free and involves fewer manufacturing steps, which makes it both cost- and energy-efficient. However, this method is limited by the requirement for specialized excipients and may not perform well for APIs with poor compressibility or flow properties.

Dry granulation, on the other hand, involves compressing the powder blend using either slugging (large tablet compaction) or roller compaction, followed by milling to produce granules. This method is also solvent-free and therefore suitable for APIs that are sensitive to heat and moisture. Its main benefits include being cost-effective, improving powder flowability, and avoiding the need for liquid binders or extended drying. Despite these advantages, dry granulation faces challenges such as limited compressibility of certain APIs and the necessity for specialized equipment like roller compactors, which may increase initial investment costs.

Finally, wet granulation is the most widely applicable method. In this process, a binder solution is added to the powder blend to form wet granules, which are then dried, milled, and sized before compression. This technique is particularly effective for APIs with poor compressibility or low dosage levels, as it ensures strong granule formation, uniform distribution of ingredients, and improved tablet quality. Wet granulation offers high flexibility and can handle a wide range of formulations, making it a preferred choice for complex drugs. However, it also presents challenges, as it is more time-consuming and expensive compared to other methods. Additionally, solvent handling, drying processes, and longer production cycles increase operational complexity.

6. Conclusion

The choice between direct compression and granulation is one of the most important decisions in tablet manufacturing steps.

• Direct Compressionis ideal when the API and excipients have good flow and compressibility. It offers speed, cost savings, and sustainability.
• Dry Granulationis excellent for moisture- or heat-sensitive APIs, offering a balance between efficiency and robustness.
• Wet Granulationremains the most versatile method, especially when producing tablets with challenging APIs.

In modern pharma tablet manufacturing, continuous manufacturing and advanced excipient technologies are reshaping the pill manufacturing process. By understanding the tablet composition and choosing the right tablet making procedure, manufacturers can deliver safe, effective, and consistent medicines to patients worldwide.
